Bimetallic
Wear Protection

A high-hardness layer — chrome white iron or carbide — over a structural steel base: abrasion resistance where the material slides, impact absorption where it strikes. Weld-on and replaceable in the field.

Request a quote All product lines
Materials
Chrome white iron / carbide layer over structural steel
Layer hardness
Up to ≈700 HB (Cr7C3 overlay 58–65 HRC)
Installation
Direct welding onto the base steel — modular, field-replaceable
Applications
Bucket lips, sides and bottoms, hoppers, chutes, transfer points
Availability
Ready-to-order or custom-engineered — Maximum Productivity · Longer Life · Special Application

The protection line

Armor for the wear zone

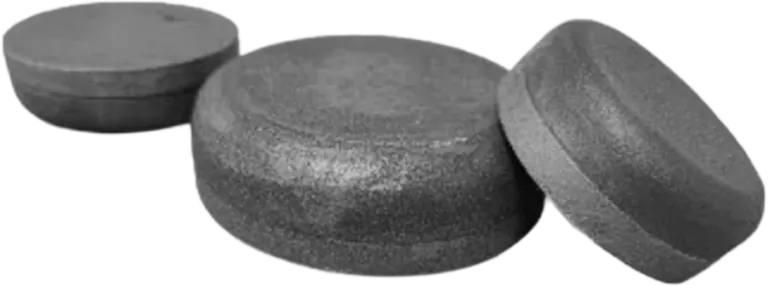

Bimetallic buttons and blocks

Localized

Buttons & Blocks

Point protection for concentrated impact and severe wear zones.

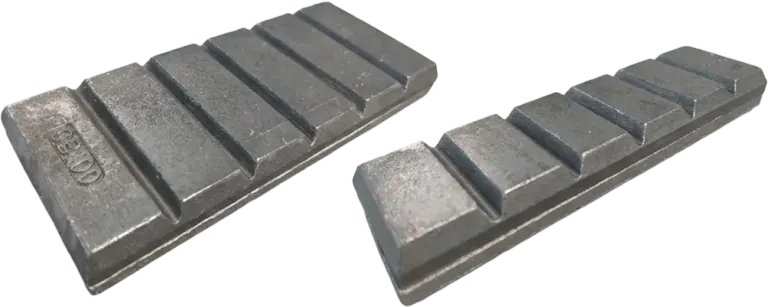

Bimetallic chocky bars

Modular

Chocky Bars

Continuous protection on high-wear surfaces, adapted to each component’s wear map.

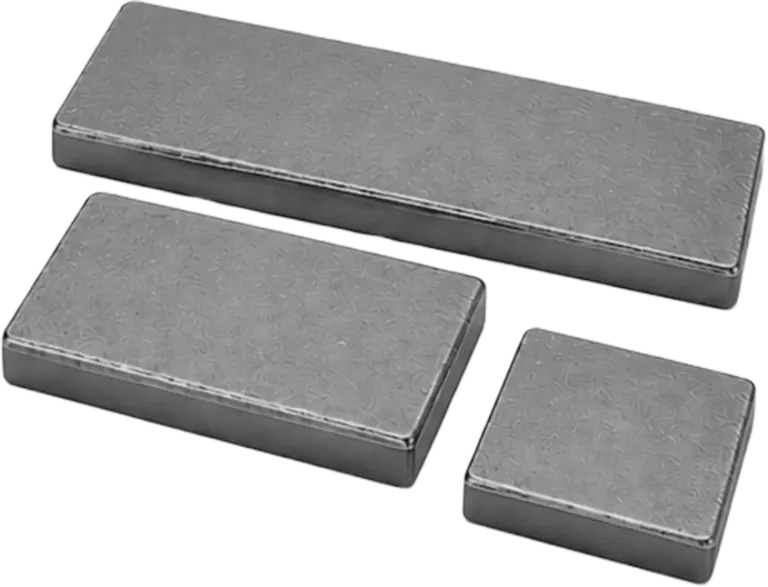

Chromium carbide overlay plate

Cr7C3 · Premium

Overlay Plates

Chromium carbide overlay on steel for chutes, hoppers and transfer points under extreme sliding abrasion.

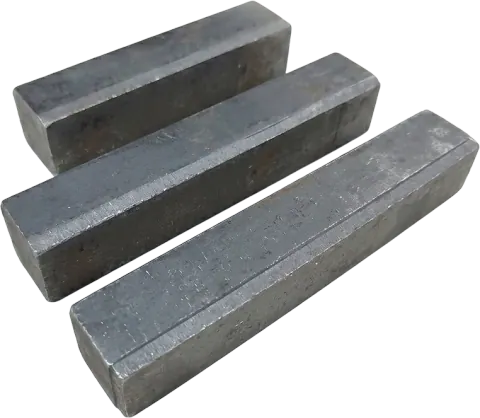

Wear runners and strips

Linear

Runners & Strips

Linear protection welded along guides, chute edges and contact lines.

Overlay technology

Chromium carbide overlay (CCO)

A chromium carbide layer fusion-bonded to a mild-steel backing by submerged- or open-arc welding. The microstructure is primary Cr7C3 carbides in a eutectic austenite matrix: the hard carbides take the abrasion while the ductile plate absorbs impact and keeps the product weldable, formable and easy to install.

Standard CCO Plate

58–63 HRC · Cr7C3 > 35%

  • ·Outlasts quenched & tempered 400 BHN plate by 5–6× in high-abrasion service
  • ·Hardness evenly distributed through the overlay
  • ·Overlay thickness tolerance under 0.5 mm · flatness within ±3 mm/m
  • ·Cut, rolled, drilled, bolted or studded to your drawing
Welding
Mild-steel or low-hydrogen consumables, no preheat required
Cutting
Plasma, cut from the backing-plate side for a clean edge

Smooth CCO — premium

60–64 HRC · Crack- and bead-free surface

  • ·Automatic welding process yields a practically crack- and weld-bead-free surface
  • ·Uniform chemistry and hardness through thickness — variation typically under 3 Rockwell points
  • ·1.5–4× the service life of conventional overlay plate
  • ·Smooth face means lower friction and far less build-up handling bulk material
  • ·ASTM G65-4 mass loss: M30 < 0.15 g · M70 < 0.11 g

M30 — regular wear duty, 59–64 HRC: excellent abrasion resistance with moderate impact tolerance.

M70 — W, Nb, Ti, V and Mo added to the overlay for compound carbides: the strongest abrasion and impact resistance of the range.

M10 — non-magnetic wear plate for strong magnetic environments: 5× the life of 304 stainless in magnetic separators and iron removers.

Standard chromium carbide overlay plate showing the characteristic ribbed weld-bead surface

Standard CCO

The as-welded overlay keeps its characteristic ribbed bead pattern — full abrasion resistance, at the lowest cost per square metre.

Smooth CCO plates stacked, showing the flat crack- and bead-free overlay surface

Smooth CCO

A flat, practically crack- and bead-free face: lower friction, less material build-up and 1.5–4× the service life.

Laminated wear blocks

700 HB / 63 HRC

High-chrome white iron metallurgically bonded to a mild-steel backing by a vacuum-welding process: extreme hardness on the working face, weldable and impact-tolerant behind it. Chocky bars, wear buttons, strips, wear plates and crusher hammer tips — standard shapes or custom sizes.

Where it goes

Shovel, loader and excavator bucket protection · chute liners and hopper wear plates · feeder deck plates · impact plates · rock-box bars and liners · crusher liners · truck-body liners · grizzly bars · dredge wear parts, suction mouth and cutter-head protection · hoppers, fans, screens, dampers, mixers and cyclones.

Industries served

Mining · quarrying and aggregates · cement · iron and steel making · coke and coal · dredging · civil engineering · foundry · recycling.

Technical sheet · PDF

CCO wear plate — grades, hardness, sizes & applications

Downloads in the language selected in the top menu.

Download — English

Protect the wear zone.
