01 · Crushers & Mills

Vertical Mill
(VRM)
Spare & Wear Parts

Grinding rollers, table segments and internal liners for vertical roller mills, in high-chrome castings and anti-wear alloys — with a hard-facing recovery option to restore profile and extend campaigns.

Materials
High-chrome castings · anti-wear alloys
Recovery
Hard-facing option to restore profile and extend campaigns
Quality
Erosion-resistant alloys · machined to OEM tolerance
OEM compatibility
Loesche · Gebr. Pfeiffer (MPS/MVR) · FLSmidth (ATOX/OK) · Polysius
Availability
Ready-to-order or custom-engineered — Maximum Productivity · Longer Life · Special Application

Parts index

Complete parts list

Vertical roller mill cutaway with numbered spare and wear parts — grinding rollers, table segments, separator and liners

Spare parts — machined to OEM tolerance

  1. 01Main motor
  2. 02Gearbox
  3. 03Dynamic separator
  4. 04Upper housing
  5. 05Air duct
  6. 06Hydraulic system
  7. 07Grinding table
  8. 08Nozzle ring
  9. 09Feeder
  10. 10Main frame
  11. 11Structural base

Wear parts — high-chrome & anti-wear alloys

  1. 12Grinding roller
  2. 13Grinding table segments
  3. 14Internal liners

Wear parts

The parts that do the work

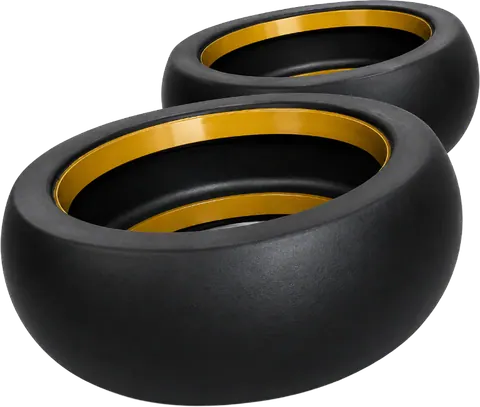

Vertical mill grinding roller in high-chrome casting

WEAR · Nº 12

Grinding roller

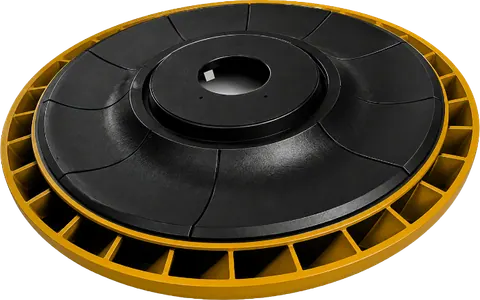

Vertical mill grinding table segments

WEAR · Nº 13

Grinding table segments

Nº 14

WEAR · Nº 14

Internal liners

Keep the table turning.
