01 · Crushers & Mills

Ball Mill
Spare & Wear Parts

Liners, diaphragms and wear parts for ball mills in manganese steel, Cr-Mo alloys and high chrome — lifter profile matched to the grinding stage, with custom-slotted intermediate and discharge diaphragms.

Materials
Manganese steel · Cr-Mo alloys · high chrome
Lifter profile
Matched to the grinding stage; custom-slotted diaphragms
Quality
Certified alloys · drive spares machined to OEM tolerance
OEM compatibility
FLSmidth · KHD · ThyssenKrupp Polysius · Metso
Availability
Ready-to-order or custom-engineered — Maximum Productivity · Longer Life · Special Application

Parts index

Complete parts list

Ball mill cutaway with numbered spare and wear parts — girth gear, pinion, shell, liners, diaphragm and grinding media

Spare parts — machined to OEM tolerance

  1. 01Girth gear
  2. 02Mill shell
  3. 03End cap
  4. 04Feed device
  5. 05Feed screw
  6. 06Bearing seat
  7. 07Mill head
  8. 08Support frame
  9. 09Drive-end frame
  10. 10Pinion
  11. 11Metal base
  12. 12Coupler
  13. 13Motor

Wear parts — certified alloys

  1. 14Diaphragm
  2. 15Liner plates
  3. 16Grinding media

Wear parts

The parts that do the work

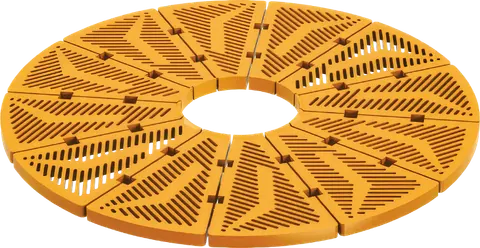

Ball mill diaphragm

WEAR · Nº 14

Diaphragm

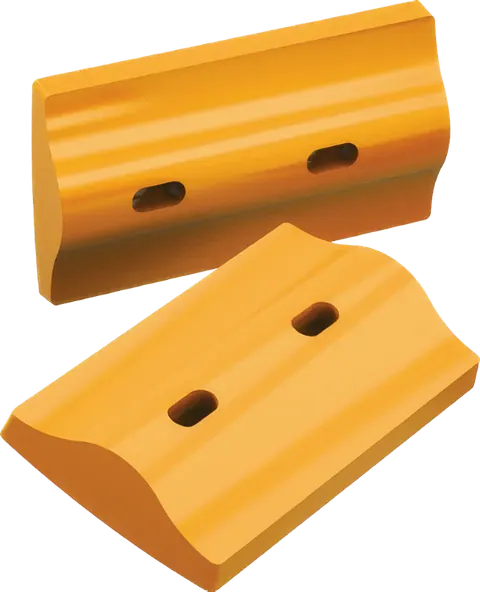

Ball mill liner plates

WEAR · Nº 15

Liner plates

Grinding media — cast, rolled and forged balls

WEAR · Nº 16

Grinding media →

Keep the mill grinding.
