Home / Products / Undercarriage
07 · Tracked Equipment
Undercarriage
Track Systems
High-resistance undercarriage components for tracked equipment in mining, quarries, mobile crushing plants and load-and-haul — engineered for impact, cyclic load and continuous stress.
- Materials
- Deep-quench alloy steel · forged grades 12.9 / 10.9
- Range
- Chains · pins & bushings · shoes · rollers · idlers · tensioners · sprockets
- Engineering
- Deep-quench treatment · cyclic-load fatigue tested · CNC machining
- OEM compatibility
- Available for the most common tracked dozers and excavators in the market
- Availability
- Ready-to-order or custom-engineered — Maximum Productivity · Longer Life · Special Application
The track system
Every part under the machine
Complete system

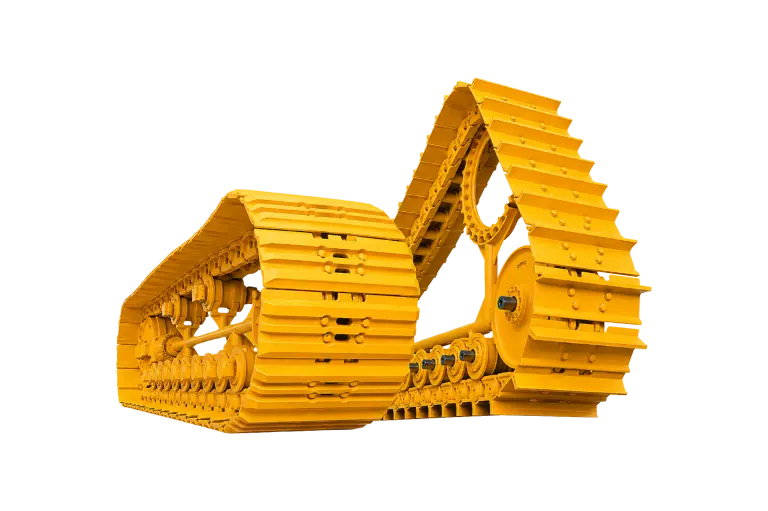

Track Assembly (Complete)
Ready-to-mount track assemblies: chain, shoes and hardware matched and pre-assembled to your machine model.
Deep quench

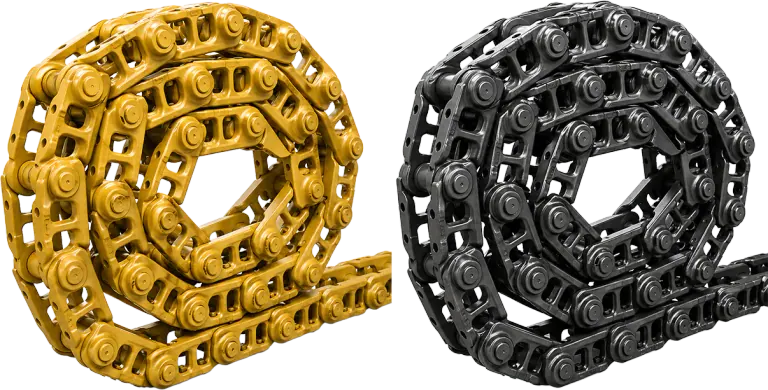

Track Chains
Hardening penetration above market standard; cyclic-load fatigue resistance.
OEM standard

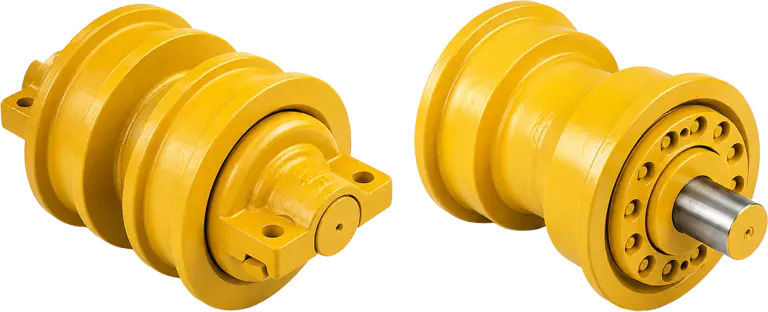

Rollers
Body and surface heat treatment, contamination seals, bronze bushings, CNC machining.
Induction hardened

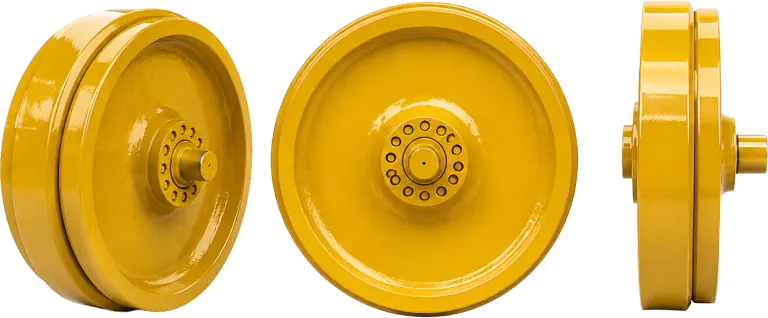

Idlers
Cast or forged, induction-hardened tread; reconditionable for longer life.
Tough core

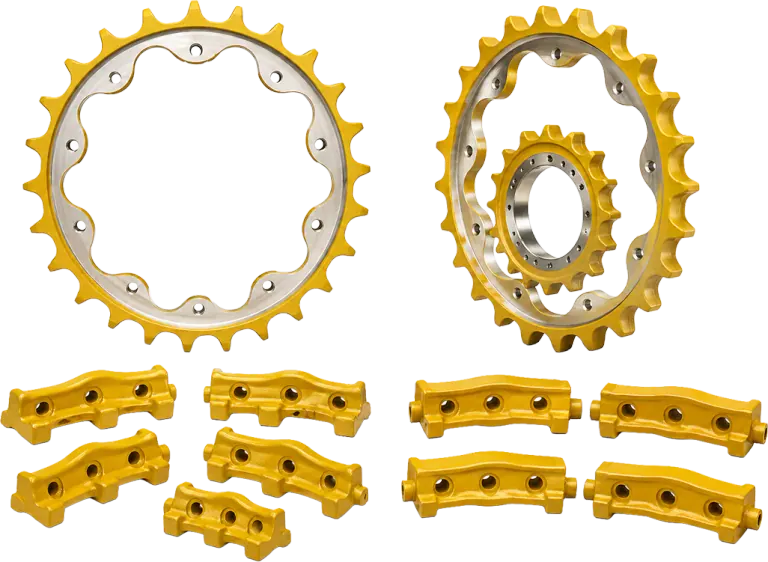

Sprockets & Segments
Surface hardening with a tough core; high wear, impact and fracture resistance.
Constant tension

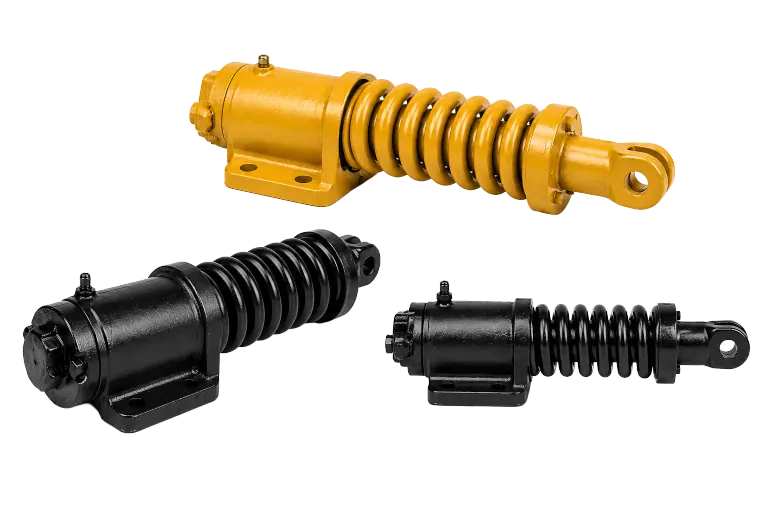

Track Tensioners
Tension spring and grease cylinder keeping constant chain tension; spring rated to 60–70% of machine weight.
1–3 grousers

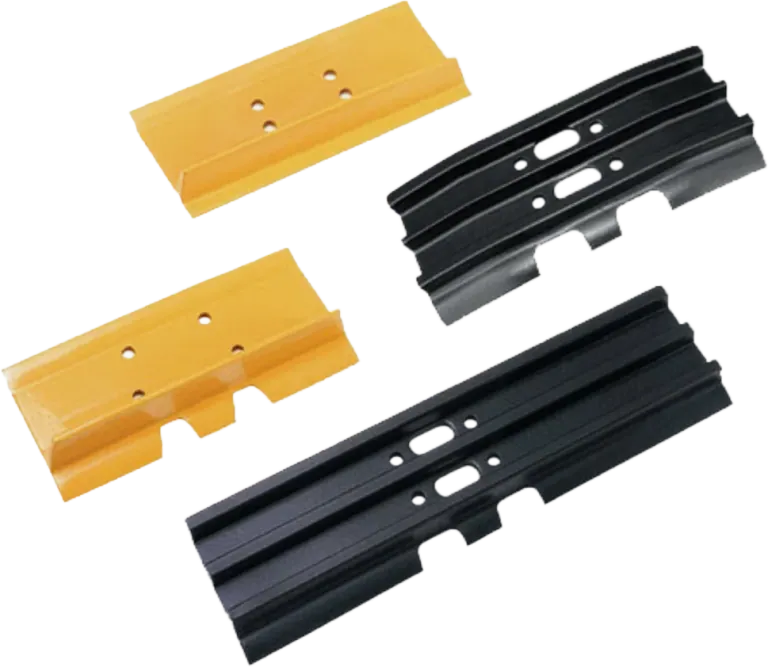

Track Shoes
Hot-rolled profiles, self-cleaning designs; pitch up to 317.5 mm (dozers) and 395 mm (excavators).
260–500 HB

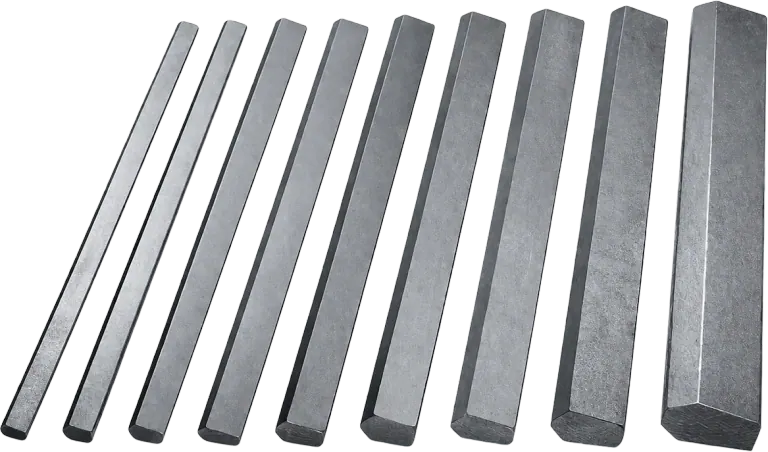

Recovery Bars
Rebuild worn shoe profiles in the field; high-carbon or boron steel, in bars or cut to spec.
12.9 / 10.9

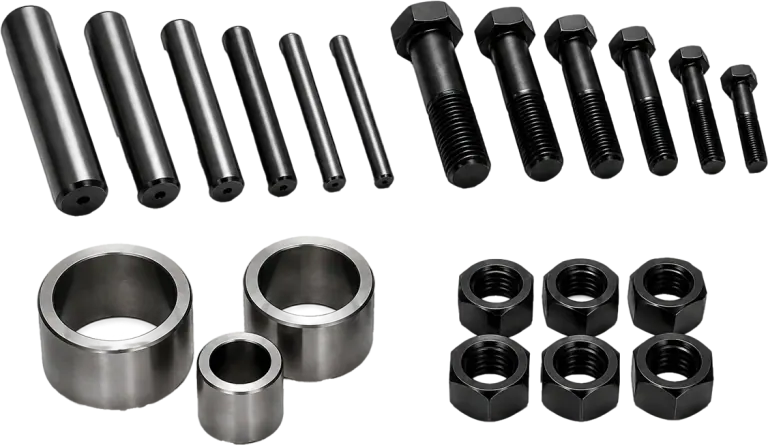

Pins, Bushings, Bolts & Nuts
Forged alloy steel with OEM-spec heat treatment; high impact and vibration resistance.
Quality
Built to exceed the original standard.
Our undercarriage components are manufactured on world-class production lines to meet — and exceed — OEM specification: the same metallurgy, heat treatment and dimensional standards the original equipment is built to, with a deeper wear reserve where it counts. The result: service life comparable to the original part on CAT, Komatsu, Hitachi, Volvo and Liebherr machines, and performance that consistently exceeds typical aftermarket replacements.
Every batch ships with its material and hardness certificates — what we promise on paper is what arrives at your site.
Deep-hardened metallurgy
Boron and alloy steels with deep-quench hardening — a wear reserve well beyond surface-hardened parts, on chains, rollers and idlers.
Fatigue-tested under cyclic load
Components validated on bench tests that reproduce real track loads — impact, torsion and millions of load cycles before a design is released.
OEM-interchangeable precision
CNC machining and 100% dimensional gauge control: every pin, bushing and link fits the original assembly without rework.
Certified, cast by cast
Full traceability from melt to delivery — chemical composition, hardness and heat-treatment certificates with every batch.
